DCP Plates

Product Quick Finder

Choose a category or subcategory

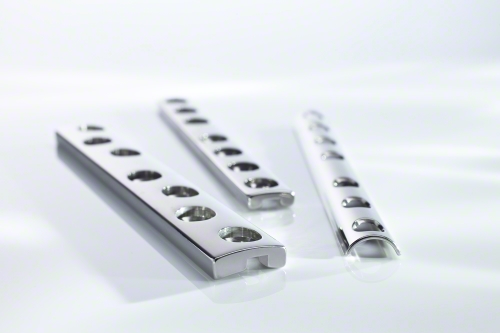

Round hole and DC-plates for screws from 1.5-4.5 mm made of implant steel

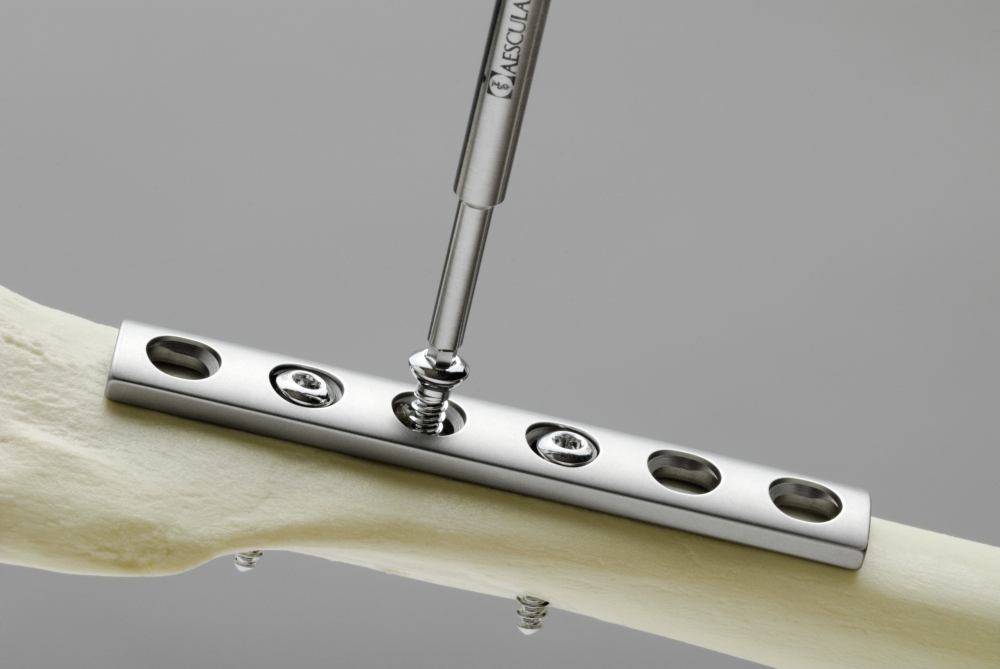

  • Straigth plates

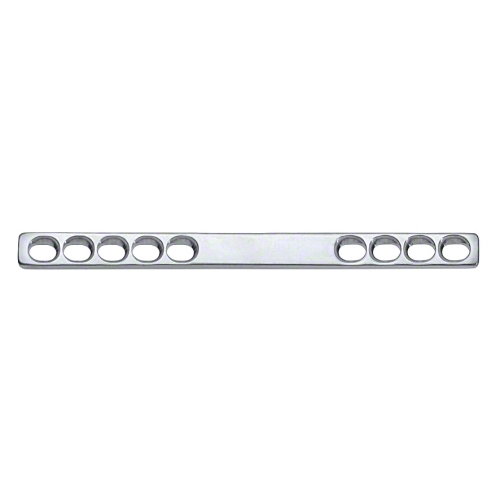

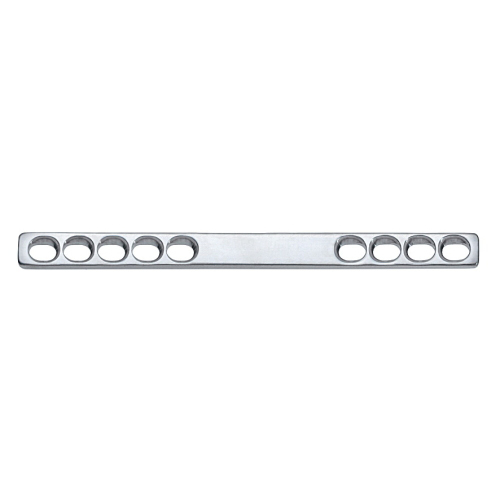

  • Lengthening plates with short and long bar

1,5 mm plates
Width: 5,0 mm
Thickness: 1,0 mm
Distance between holes: 5,0 mm

2,0 mm plates
Width: 5,3 mm
Thickness: 2,0 mm
Distance between holes: 6,0 mm

2,4 mm plates
Width: 6,5 mm
Thickness: 2,3 mm
Distance between holes: 7,0 mm

2,7 mm plates
Width: 8,0 mm
Thickness: 2,5 mm
Distance between holes: 8,0 mm

3,5 mm plates
Width: 10,0 mm
Thickness: 3,0 mm
Distance between holes: 12,0 mm

3,5 mm plates broad
Width: 12,0 mm
Thickness: 4,0 mm
Distance between holes: 12,0 mm

4,5 mm plates
Width: 12,0 mm
Thickness: 4,0 mm
Distance between holes: 16,0 mm

Indication

Fracture by cats and small dogs (small animals)
